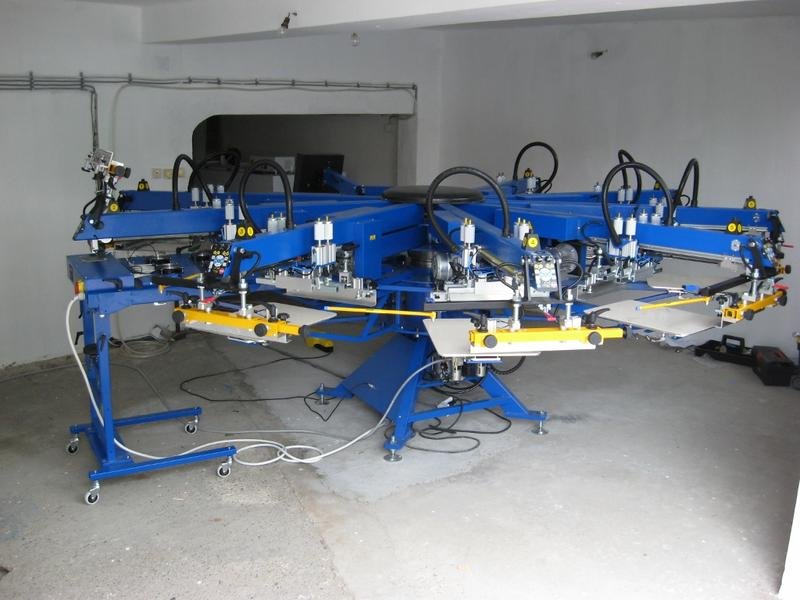

WORKMAN SL – pneumatic driven indexer, AC driven front -rear screen holder heads. Still cost effective machine with flexible print area features. AC head designed taken directly from higher model - HURRICANE. Pneumatic indexing keeps simlicity and acceptable speed with low cost design. Print area 41 x 46 cm (16 x 18") or optional 41 x 50 cm (16 x 20”) keeps diameter of machine in "compact" range, with big printing capability still available 50 x 50 cm (20 x 20") print area version under NUMATICO name.
| Specifications | WORKMAN S 6/8 | WORKMAN S 7/8 | WORKMAN S 8/10 | WORKMAN S 9/10 |
|---|---|---|---|---|
| Air requirements | 7 Bar, 500 l/min | 7 Bar, 550 l/min | 7 Bar, 600 l/min | 7 Bar, 650 l/min |
| Electrical requirements | 400 V, 3PH,4 kW | 400 V, 3PH, 4,5 kW | 400 V, 3PH, 5 kW | 400 V, 3PH, 5,5kW |
| Total diameter | 400 cm | 400 cm | 420 cm | 420 cm |
| Standard print area | 41х46 cm | 41х46 cm | 41х46 cm | 41х46 cm |
| Maximum print area | 80х50 cm | 80х50 cm | 80х50 cm | 80х50 cm |
| Standard pallets | 41x56 cm | 41x56 cm | 41x56 cm | 41x56 cm |
| Total weight | 1400 kg | 1590 kg | 1800 kg | 2100 kg |
Rotation
• Pneumatic driven indexing system Lifting
• Single lifting cylinder with central off-contact mechanism
Print head
• Consist of keypad panel with control over all head and machine motion movements

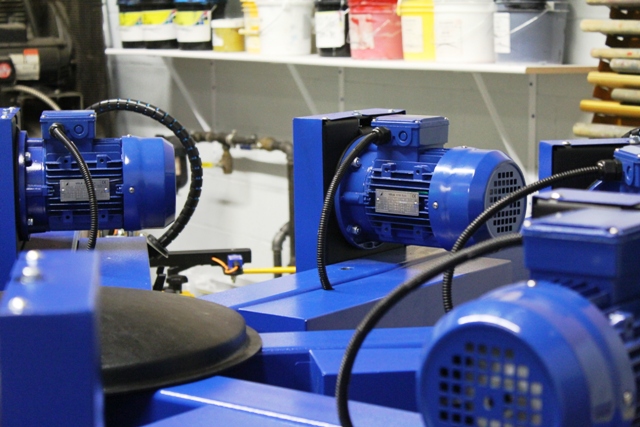

• AC driven carriage travel with frequency converter for speed and torque control
• Both sides print length adjustment, carriage hand manipulation fault proof
• Advanced programming functions
• Software is constantly proved also according to printers suggestions (We gladly listen to Your comments, help us create better screen printing tool!)
Advanced programming functions
• Software is constantly upgraded according to printers suggestions (We gladly listen to your comments, as they help us
create a better screen printing tool and help us grow as a manufacturer!)
Screen Locks
• Pneumatic screen locks controlled directly from every print head
• Additional manual clamps for increased screen pressure
Registration
• Division tolerance is extremely accurate because we understand that proper registration is directly responsible for print
quality
• Upper division has an acceptable range of +/-0,01 mm
• Printing point on pallets has maximum deviation of +/- 0,025 mm
• The numbers above ensure maximum accuracy for textile screen printing and also enables accuracy for other specialty
materials and surface printing
• Side micro-alignment with 3 axis
• Fast print alignment with floor light pallet

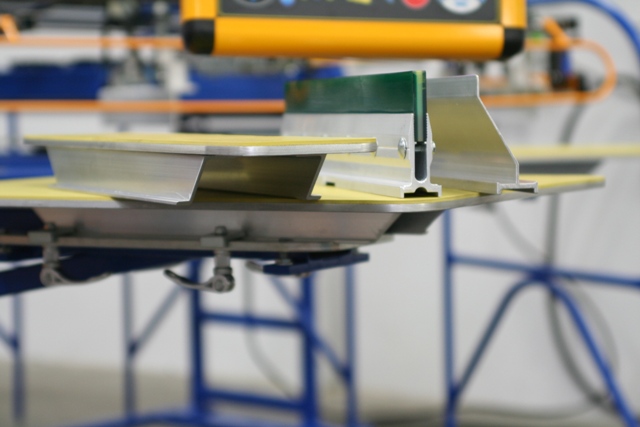

Squeegee and flood bar
• Independent settings for squeegee and flood bar print adjustment
• Fast and simple squeegee and flood bar angle adjustment
Warranty and service
• 1 year warranty
• Service agreement with special conditions
Additional Options
• Special upper wheel design to fit through 80 cm (30 " doors)
