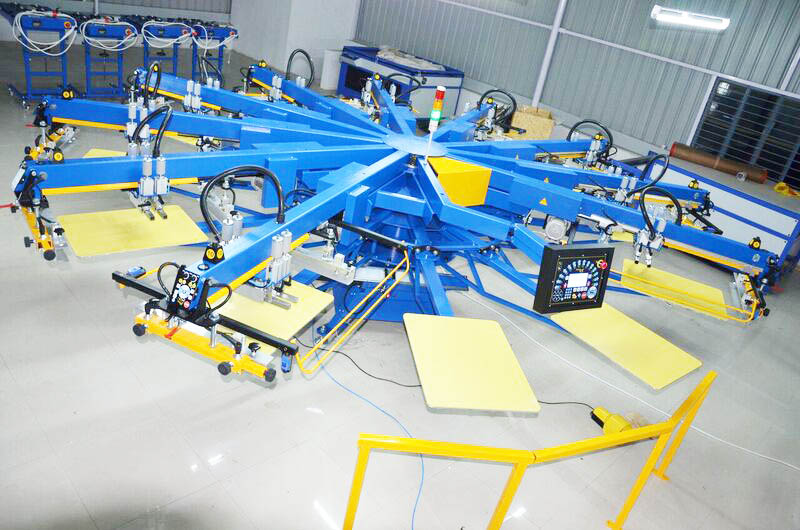

PRISM II

Automatic screen printing press

The PRISM was originally developed for this kind of adaptability in screen printing processes and later evolved into the PRISM II rotary machine. This heavy duty design, armed with an overabundance of features, enables a wide variety of customization and specialized functionality. In primary application of textile printing durability and strength of the PRISM II is extreme. Because we consider the PRISM series to be a commercial tool, we consider the concept of the word option a little differently. We are not offering pneumatic clamps, digital off-contact and advanced software as options - these features are provided as standard features. In the standard version of the PRISM II we offer one of the longest print strokes in rotary screen printing machines - 110 cm. Not only dowe offer the fully equipped standard version of the PRISM II (we are ready to customize the machine according to our customers' needs). The PRISM II also comes with front-rear advanced screen clamping system as a standard feature, with mechanical isolation of the flash it enables of use Constant print area rule - which allows the printer to pass along characteristics of print length to width and vice versa. In addition to the generous standard image area on every head, the operator can enlarge image areas by reducing the number of colors for all-overprinting applications. It has a great influence on flexibility of printing. The PRISM II screen printing rotary machine with multitask system enables the screen printing of different substrate and surfaces for use with specialty products. The multitask system allows the printing of many substrate types with corresponding specialty inks to be printed with maximum efficiency. In the case of flat surface printing, such as the utilization of transfer paper, we can customize an integrated vacuum rotary system. To avoid the burden of high cost during the initial purchasing stage we offer the vacuum rotary system as a preparation package. This makes it easy and fast to install all of the most expensive elements of the vacuum rotary system on your new PRISM II at your facility when the timing is right for you and your business. The cost of this vacuum rotary system upgrade preparation is about 30% of the system's total value. This option cannot be retrofitted and is highly recommended forf acilities that are not dedicated to printing on a single substrate. The standard printing area for PRISM II XL is 50x70 cm.

Specifications	PRISM II XL 8/10	PRISM II XL 10/12	PRISM II XL 12/14	PRISM II XL 18/20
Air requirements	6.9 Bar, 400 l/min	6.9 Bar, 500 l/min	6.9 Bar, 600 l/min	6.9 Bar, 900l/min
Electrical requirements	400 V, 3PH, 10kW	400 V, 3PH, 11 kW	400 V, 3PH, 12 kW	400 V, 3PH, 13 kW
Total diameter	503 cm	520 cm	540 cm	600 cm
Standard print area	50х70 cm	50х70 cm	50х70 cm	50х70 cm
Maximum print area	100х90 cm	100х90 cm	100х90 cm	100х90 cm
Standard pallets	55 х 75 cm	55 х 75 cm	55 х 75 cm	55 х 75 cm
Standard frame size	66х110 cm	66х110 cm	66х110 cm	66х110 cm
Total weight	2650 kg	2910 kg	3120 kg	4100 kg

**Pneumatic regulation of air pressure on each head**

**Synchronization of IR flash with automatic press**

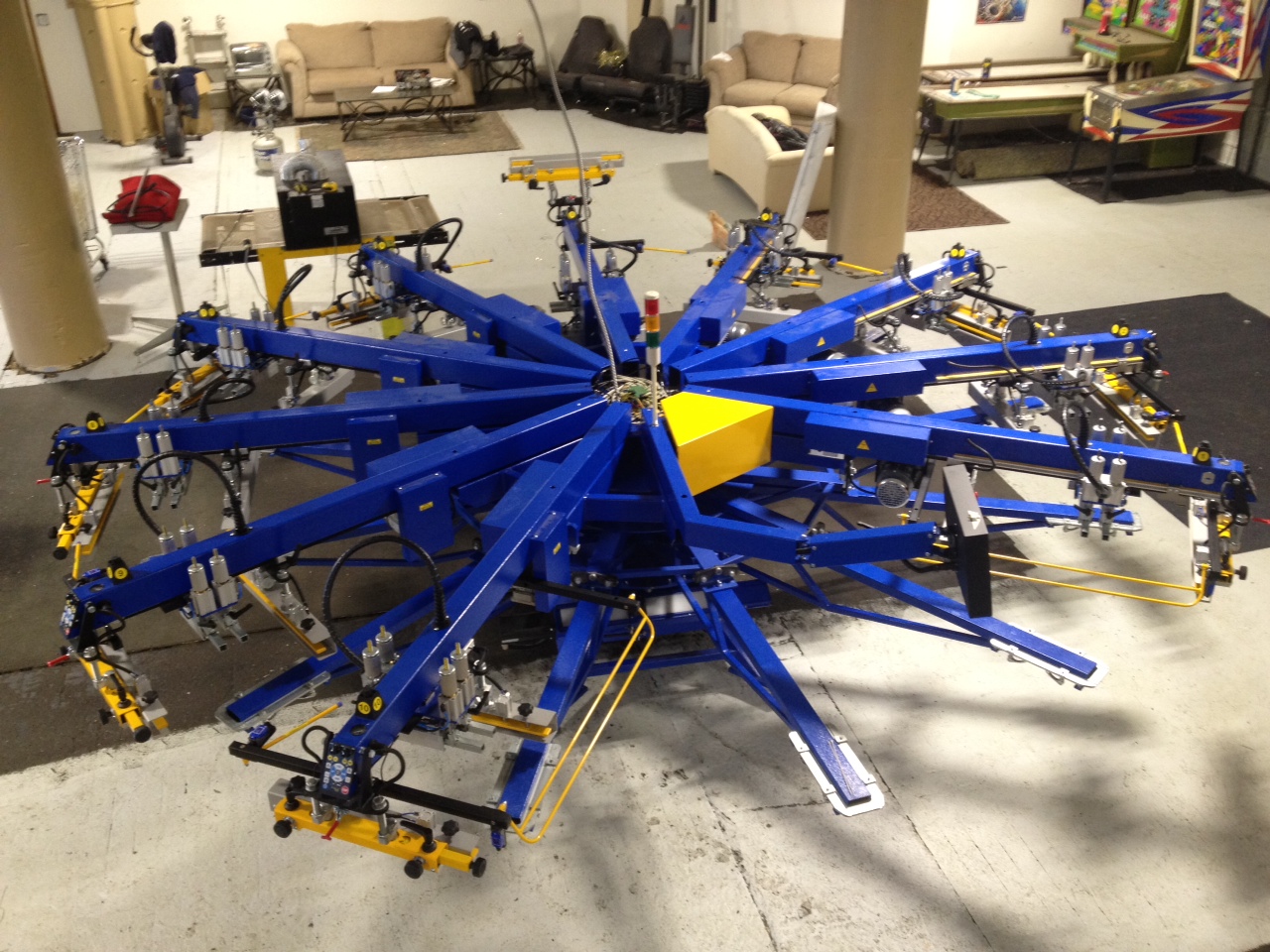

Prism II XL 16/18+Prism II XL 12/14, USA

Rotation
• Precise servo driven rotation
• Parameterized for different pallet weights ensuring smooth rotation
• Bi-directional rotation – Clockwise and Counter-Clockwise
• Servo driven indexing in combination with multi-print flashing saves a print position

Lifting
• Precision servo drive with tension spring
• Precisely set the central off-contact enables reliable repeatability in each cycle
• Combined with SEQUENCING feature creates 3-D print possibility

Print head
• Membrane panel with full control of all head functions and machine motion movements
• AC driven print stroke with frequency converter for speed and torque control
• Longest serial equipped print stroke – full stroke length dependent on machine size
• Inner and outer print stroke adjustment with fault proof carriage system – eliminates possibility
of head crash
• Constant print area rule - which allows the printer to pass along characteristics of print length
to width and vice versa
Advanced programming functions
• Software is constantly upgraded according to printers suggestions (We gladly listen to your
comments, as they help us create a better screen printing tool and help us grow as a manufacturer!)
Screen Locks
• Pneumatic screen locks controlled directly from every print head
• Additional manual clamps for increased screen pressure

Registration
• Division tolerance is extremely accurate because we understand that proper registration is directly responsible
for print quality
• Upper division has an acceptable range of +/-0,01 mm
• Printing point on pallets has maximum deviation of +/- 0,025 mm.
• The numbers above ensure maximum accuracy for textile screen printing and also enables accuracy for other
specialty materials and surface printing
• Front micro-alignment with 3 axis
• Rear micro-alignment with 1 axis
• Fast print alignment with floor light pallet

Squeegee and flood bar
• Independent settings for squeegee and flood bar print adjustment
• Squeegee air pressure regulators with glass gauges for longevity
• Fast and simple squeegee and flood bar angle adjustment
• Single touch fast squeegee and flood bar locks

Warrantyand service
• 2 year warranty
• Service agreement with special conditions

ADDITIONAL OPTIONS FOR CUSTOMIZATION AND MULTITASK

• Vacuum rotary sustem - independent vacuum pumps for each print arm, rotary power distribution
system, set of vacuum pallets and valves, independent load/unload control, enables printing on flat
surfaces assuring good adhesion with load/unload adhesion control
• Roto-flash system - scanning IR flash curing within time of pallet rotation
• UV flash system - available as stand alone or in roto-flash system)
• Round object full rotation printing system
